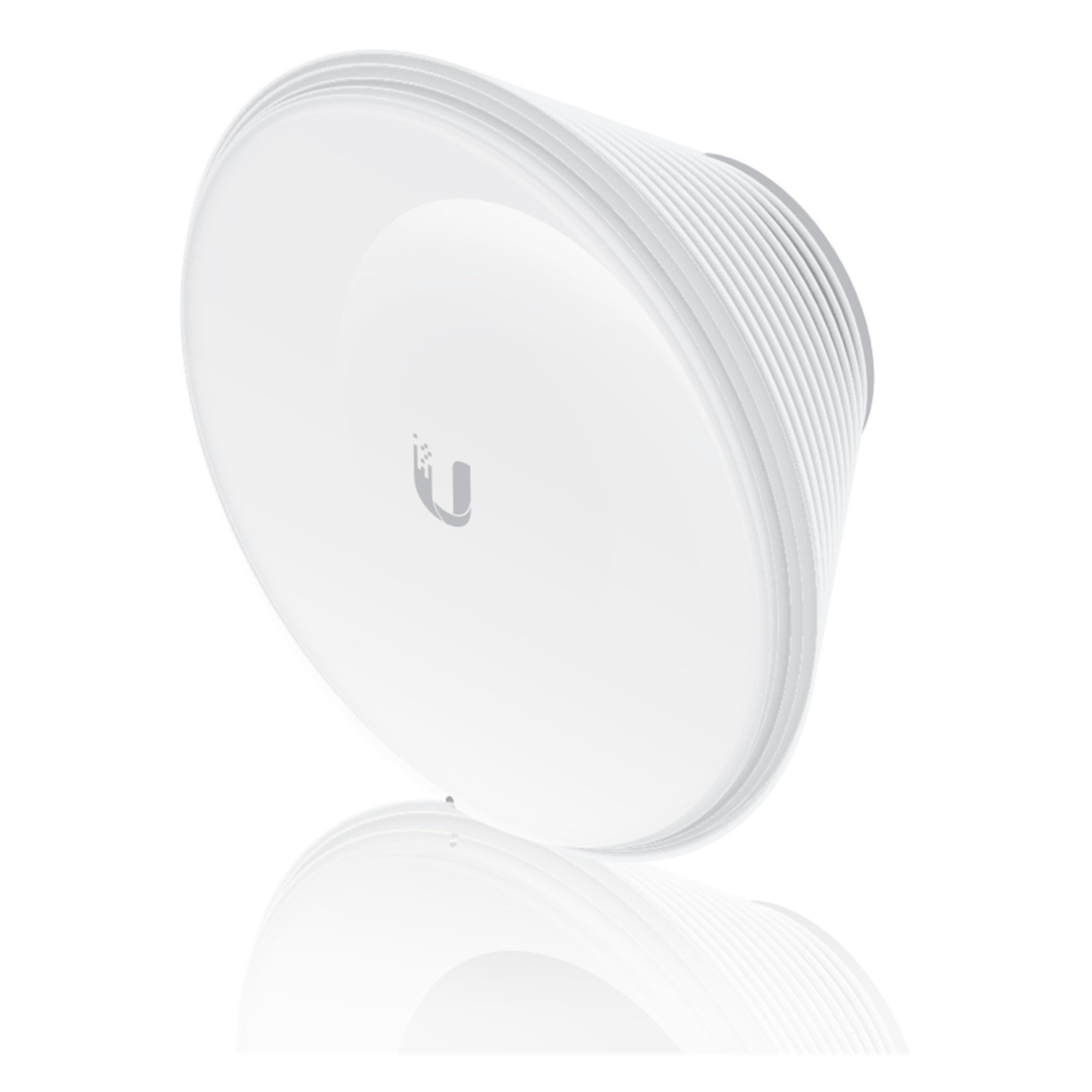

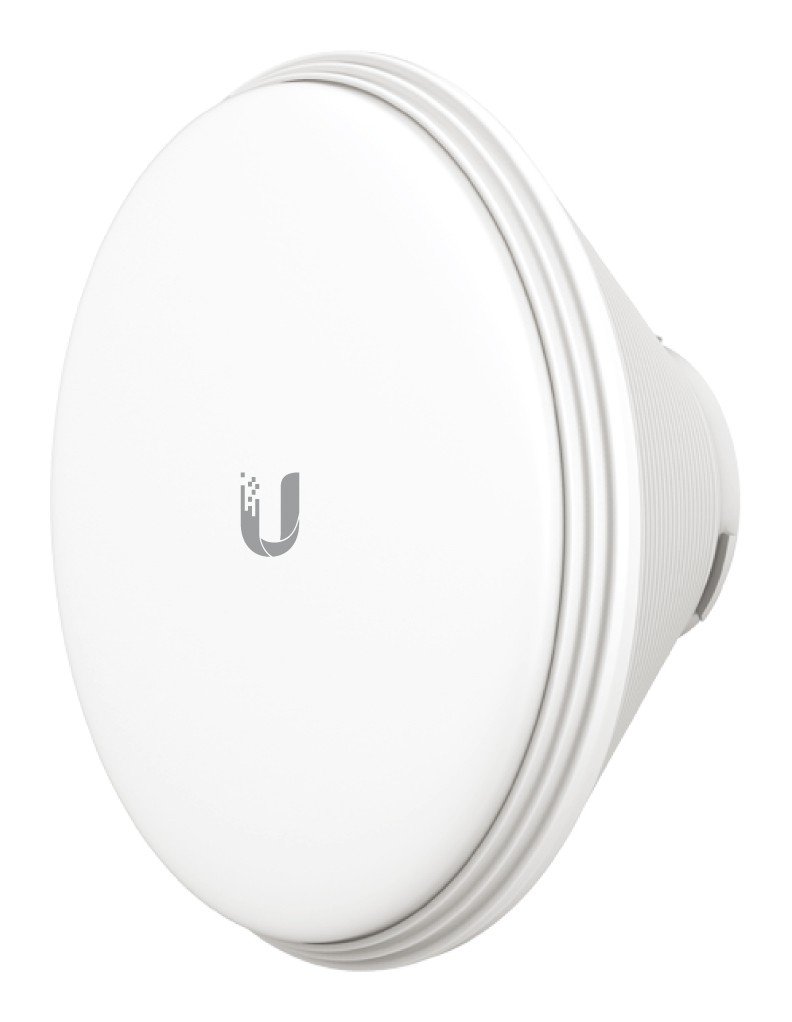

Ubiquiti Horn-5-30 Isolation Antenna Horn

5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30° to 90°.

Improved beam shaping

Enhanced co-location performance

Single button release for ease of changing antennas

Compatible with airFiber, LTU and airMAX radios

SKU: UBQ342 Category: airMax Brand: Ubiquiti

Description
Reviews (0)

Ubiquiti Horn-5-30 Isolation Antenna Horn Features

The Ubiquiti Horn-5-30 is an isolation antenna horn for PrismStation and IsoStation. With flexible sectorisation for optional antenna beamwidths, the PrismAP antennas are interchangeable and improve beam‐shaping for specific deployment and environment needs.

Ubiquiti Horn-5-30 Key Features

Designed for increased co-location performance
Designed for use with PS-5AC, IS-5AC, and IS-M5
Single button release for ease of changing antennas
Newly designed horn for improved beam shaping

The PrismStation 5AC and IsoStations use horn antenna sectors designed for increased co‐location performance without sacrificing gain. Symmetrical horn antennas offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology. The PrismAP antennas come with precise radiation angles for specific beam shaping, making them suitable for a wider range of installations.

Scalability

There are two symmetrical horn antennas:

Horn-5-30: 30° beamwidth
Horn-5-45: 45° beamwidth

These models offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Modular design

With flexible sectorisation for optional antenna beamwidths, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environment needs. Ubiquiti PrismStations uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the PrismStation 5AC is versatile and cost-effective to deploy.

Enhanced co-location

Asymmetrical horn antennas have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Symmetrical Horn Antennas are ideal for cluster sector installations with high co-location requirements.
